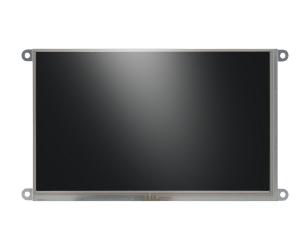

The 4DLCD TFT-LCD 9.0″ is a high-performance, colour active matrix LCD module featuring advanced amorphous silicon Thin Film Transistor (TFT) technology.
This module is meticulously designed, comprising a vibrant colour TFT-LCD panel, an integrated driver IC, a flexible printed circuit (FPC), a durable backlight unit, and a responsive capacitive touch panel, all protected by a robust Cover Lens Bezel.
The display area is available in two resolution options: 800 x 480 pixels and 1080 x 720 pixels. Both configurations ensure crisp visuals and smooth touch interactions, catering to a variety of application needs.
Additionally, this product is fully compliant with RoHS environmental standards, reflecting our commitment to eco-friendly manufacturing processes.
Available in:
800×480 pixels
4DLCD-90800480 – 9.0″ TFT LCD, Non Touch
4DLCD-90800480-RTP – 9.0″ TFT LCD, Resistive Touch
4DLCD-90800480-CTP – 9.0″ TFT LCD, Capacitive Touch
4DLCD-90800480-CTP-CLB – 9.0″ TFT LCD, Capacitive Touch with Cover Lens Bezel
1080×720 pixels
4DLCD-901280720 – 9.0″ IPS TFT LCD, Non Touch
Note: This is a raw TFT display module. It does not feature an onboard processor and cannot be directly programmed. To function properly, it must be integrated with a compatible processor and the necessary driving circuitry to operate this type of display.
For more variants or options, contact us. We’ll assist you in finding the right solution.
