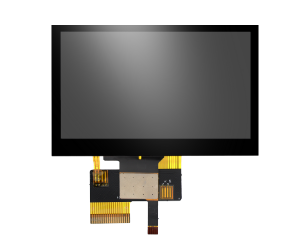

The 4DLCD TFT-LCD 4.3″ is a high-performance, colour active matrix LCD module featuring advanced amorphous silicon Thin Film Transistor (TFT) technology.

This module is meticulously designed, comprising a vibrant colour TFT-LCD panel, an integrated driver IC, a flexible printed circuit (FPC), a durable backlight unit, and a responsive Capacitive Touch panel, all protected by a robust Cover Lens Bezel.

The display area is available in two resolution options: 480 x 272 pixels and 800 x 480 pixels, allowing for flexibility in clarity and detail, depending on the application. Both options ensure crisp visuals and smooth touch interactions.

Furthermore, this product is fully compliant with RoHS environmental standards, reflecting our commitment to eco-friendly manufacturing processes.

Available in:

480×272 pixels

4DLCD-43480272-IPS  – 4.3″ IPS TFT LCD, Non Touch
4DLCD-43480272-RTP-IPS – 4.3″ IPS TFT LCD, Resistive Touch
4DLCD-43480272-CTP-IPS – 4.3″ IPS TFT LCD, Capacitive Touch
4DLCD-43480272-CLB-IPS – 4.3″ IPS TFT LCD, Non Touch with Cover Lens Bezel
4DLCD-43480272-CTP-CLB-IPS – 4.3″ IPS TFT LCD, Capacitive Touch with Cover Lens Bezel

800×480 pixels
4DLCD-43800480-IPS – 4.3″ IPS TFT LCD, Non Touch
4DLCD-43800480-RTP-IPS – 4.3″ IPS TFT LCD, Resistive Touch
4DLCD-43800480-CTP-CLB-IPS –  4.3″ IPS TFT LCD, Capacitive Touch with Cover Lens Bezel

Note: This is a raw TFT display module. It does not feature an onboard processor and cannot be directly programmed. To function properly, it must be integrated with a compatible processor and the necessary driving circuitry to operate this type of display.

For more variants or options, contact us. We’ll assist you in finding the right solution.
