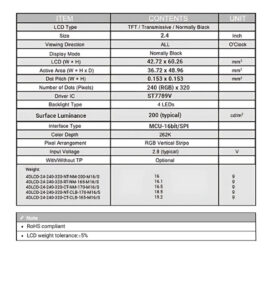

The 4DLCD TFT-LCD 2.4″ is a high-quality colour active matrix LCD module featuring advanced amorphous silicon TFT (Thin Film Transistor) technology. This module includes a vibrant colour TFT-LCD panel, a precise driver IC, an FPC (Flexible Printed Circuit), and an efficient backlight unit. With a display resolution of 240×320 pixels, it supports a rich color palette of up to 262K colours, delivering clear and vivid images. This product is fully compliant with RoHS environmental standards, ensuring it meets stringent environmental regulations.

The integration of an IPS (In-Plane Switching) panel further enhances the display’s performance, providing wide viewing angles and consistent colour reproduction, making it ideal for applications where display clarity from various perspectives is critical.

Available in:

4DLCD-24320240-IPS – 2.4″ IPS TFT LCD, Non Touch
4DLCD-24320240-RTP-IPS – 2.4″ IPS TFT LCD, Resistive Touch
4DLCD-24320240-CTP-IPS – 2.4″ IPS TFT LCD, Capacitive Touch
4DLCD-24320240-CLB-IPS – 2.4″ IPS TFT LCD, Non Touch with Cover Lens Bezel
4DLCD-24320240-CTP-CLB-IPS -2.4″ IPS TFT LCD, Capacitive Touch with Cover Lens Bezel
4DLCD-24240320-TSF – 2.4″ Transflective TFT LCD, Non Touch

Note: This is a raw TFT display module. It does not feature an onboard processor and cannot be directly programmed. To function properly, it must be integrated with a compatible processor and the necessary driving circuitry to operate this type of display.
