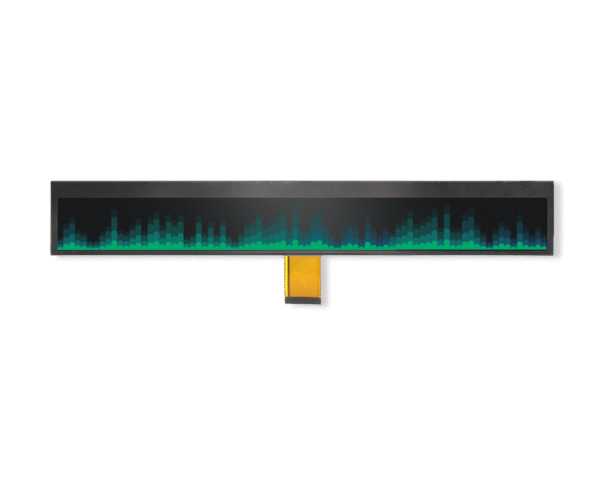

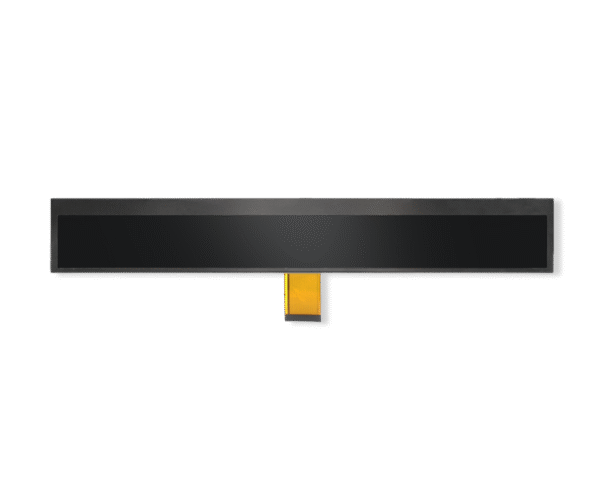

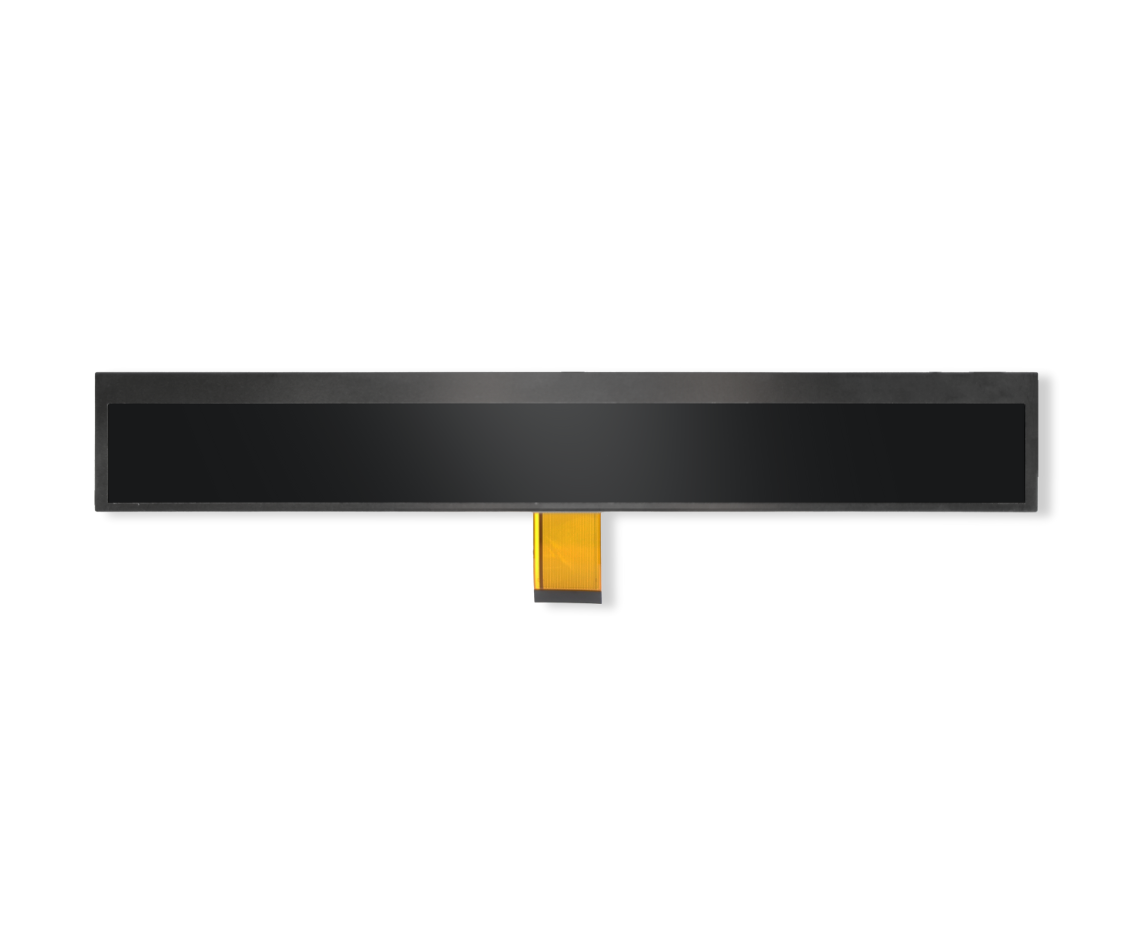

The 4D LCD 10.4″ TFT-LCD display is a wide-format, high-performance colour display module designed for specialised applications requiring horizontal data presentation and visual clarity. Built with advanced amorphous silicon Thin Film Transistor (TFT) technology, this module ensures excellent stability, image quality, and long-term reliability.

This non-touch display features a 1024 x 100 pixel resolution, making it ideal for applications such as equipment status bars, digital signage strips, and narrow-format control interfaces where space is limited but information visibility is critical. Despite its ultra-wide aspect ratio, the display maintains vibrant colour output with support for up to 262K colours.

The module includes a high-efficiency LED backlight, a precise driver IC, and a flexible printed circuit (FPC) for easy integration into a wide range of embedded systems. Its slim profile and horizontal layout provide a sleek solution for professional and industrial environments.

The 4D LCD 10.4″ display is RoHS compliant, reflecting 4D LCD’s commitment to environmentally responsible manufacturing and sustainable design.

Available in:
4DLCD-104-1024-100-NT-NM-950-R – 10.4″ IPS TFT LCD, Non Touch

Note: This is a raw TFT display module. It does not feature an onboard processor and cannot be directly programmed. To function properly, it must be integrated with a compatible processor and the necessary driving circuitry to operate this type of display.

Contact us for more variants or options. We’ll assist you in finding the right solution.

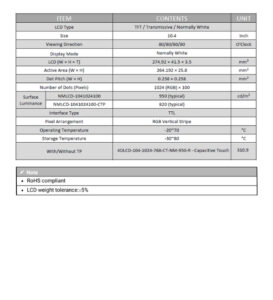

Specifications

Downloads

4DLCD-104-1024-768-Series_Datasheet//res-academy.cache.wpscdn.com/images/seo_posts/20230705/8588d8f345b737b64a61e53b2a9c8128.png

4DLCD-104-1024-768-Series_Drawing//res-academy.cache.wpscdn.com/images/seo_posts/20230705/8588d8f345b737b64a61e53b2a9c8128.png



10.4″ TFT-LCD

SKU 4DLCD-104-1024-100-NT-NM-950- R Category

The 4D LCD 10.4″ TFT-LCD display is a wide-format, high-performance colour display module designed for specialised applications requiring horizontal data presentation and visual clarity. Built with advanced amorphous silicon Thin Film Transistor (TFT) technology, this module ensures excellent stability, image quality, and long-term reliability.

This non-touch display features a 1024 x 100 pixel resolution, making it ideal for applications such as equipment status bars, digital signage strips, and narrow-format control interfaces where space is limited but information visibility is critical. Despite its ultra-wide aspect ratio, the display maintains vibrant colour output with support for up to 262K colours.

The module includes a high-efficiency LED backlight, a precise driver IC, and a flexible printed circuit (FPC) for easy integration into a wide range of embedded systems. Its slim profile and horizontal layout provide a sleek solution for professional and industrial environments.

The 4D LCD 10.4″ display is RoHS compliant, reflecting 4D LCD’s commitment to environmentally responsible manufacturing and sustainable design.

Available in:
4DLCD-104-1024-100-NT-NM-950-R – 10.4″ IPS TFT LCD, Non Touch

Note: This is a raw TFT display module. It does not feature an onboard processor and cannot be directly programmed. To function properly, it must be integrated with a compatible processor and the necessary driving circuitry to operate this type of display.

Contact us for more variants or options. We’ll assist you in finding the right solution.

Specifications

Downloads

4DLCD-104-1024-768-Series_Datasheet//res-academy.cache.wpscdn.com/images/seo_posts/20230705/8588d8f345b737b64a61e53b2a9c8128.png

4DLCD-104-1024-768-Series_Drawing//res-academy.cache.wpscdn.com/images/seo_posts/20230705/8588d8f345b737b64a61e53b2a9c8128.png
